Introducing the 2025ing dual laser lines for accurate alignment and an IP54-rated digital inclinometer for durability, this ruler displays angles on an easy-to-read LED screen. Suitable for various applications, it ensures reliability and convenience in any setting.

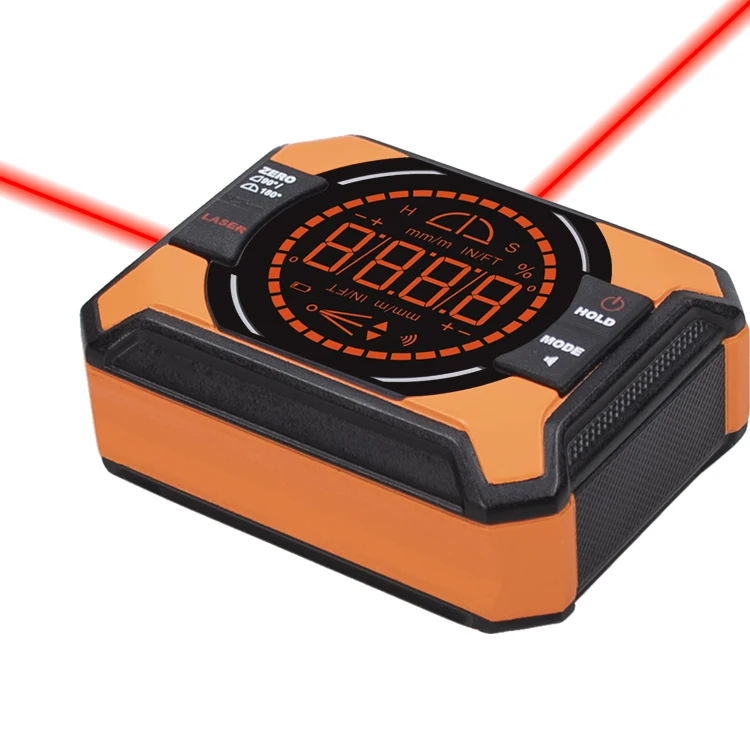

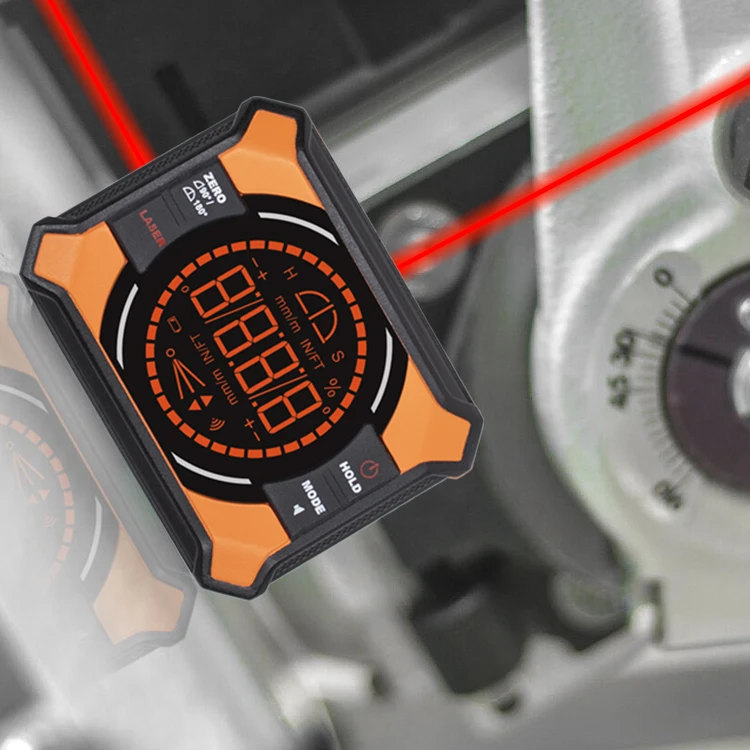

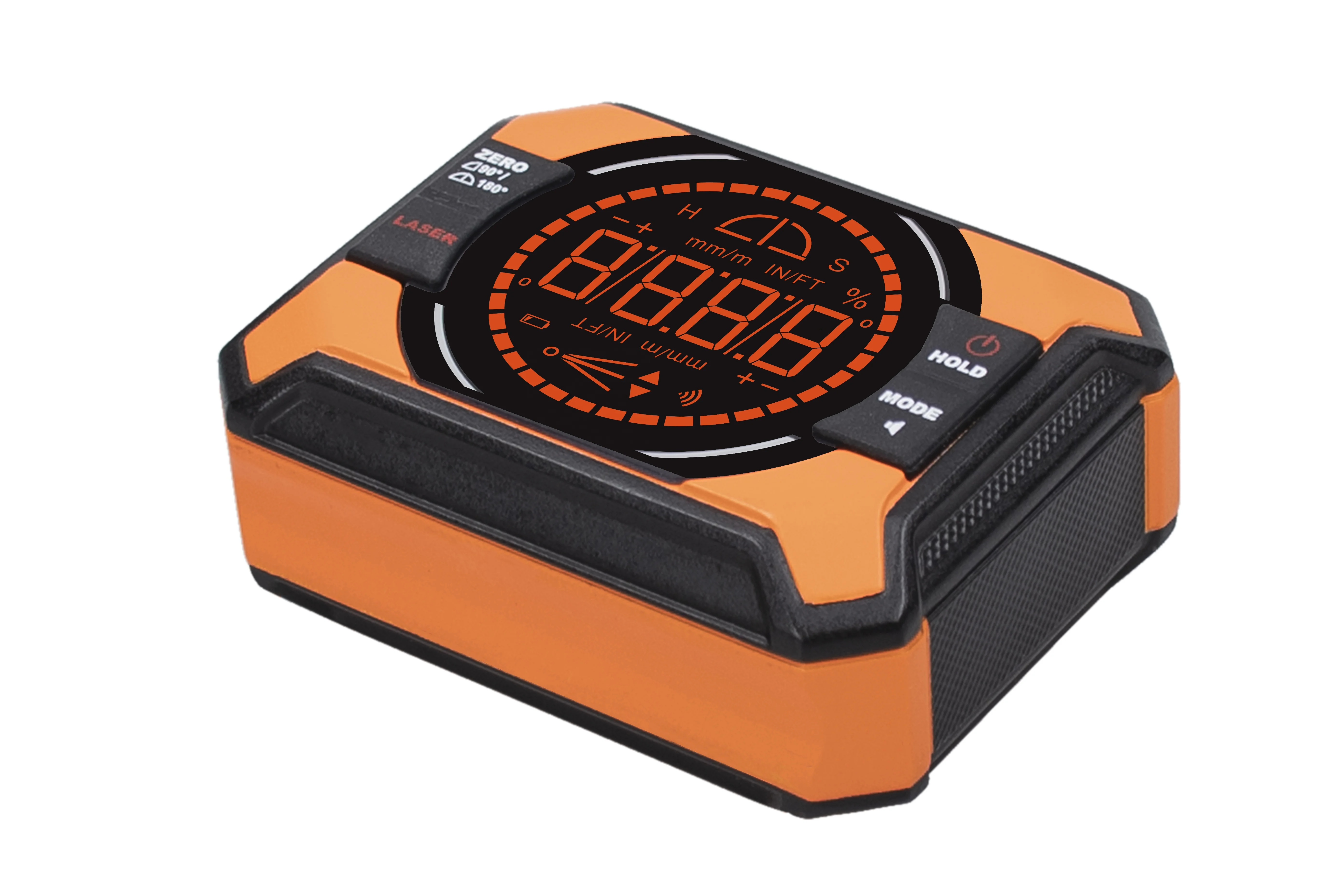

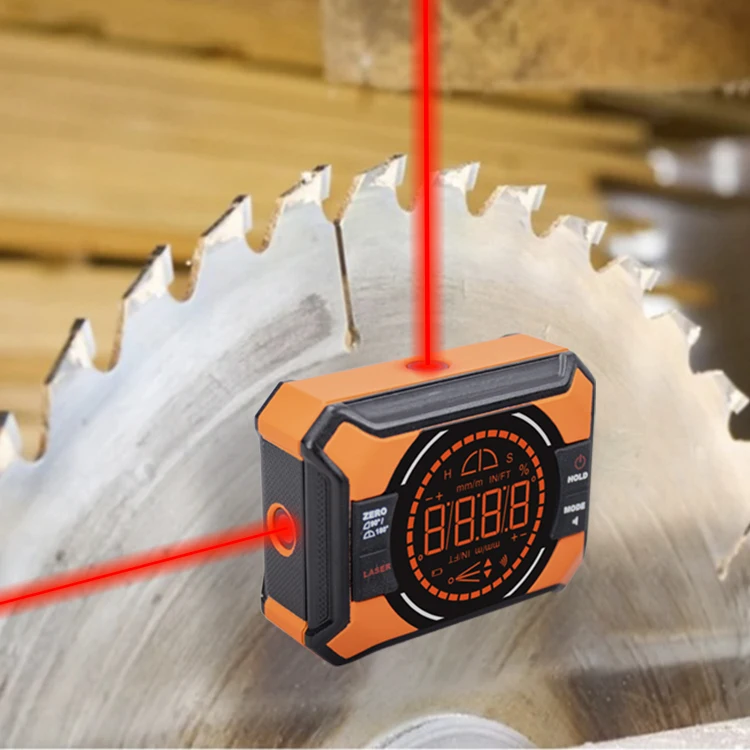

2025 NEW, with 2 Lasers lines Digital Angle Ruler, IP54 Digital Inclinometer Level, LED Display Digital Angle Gauge
| Item code | DL905 |

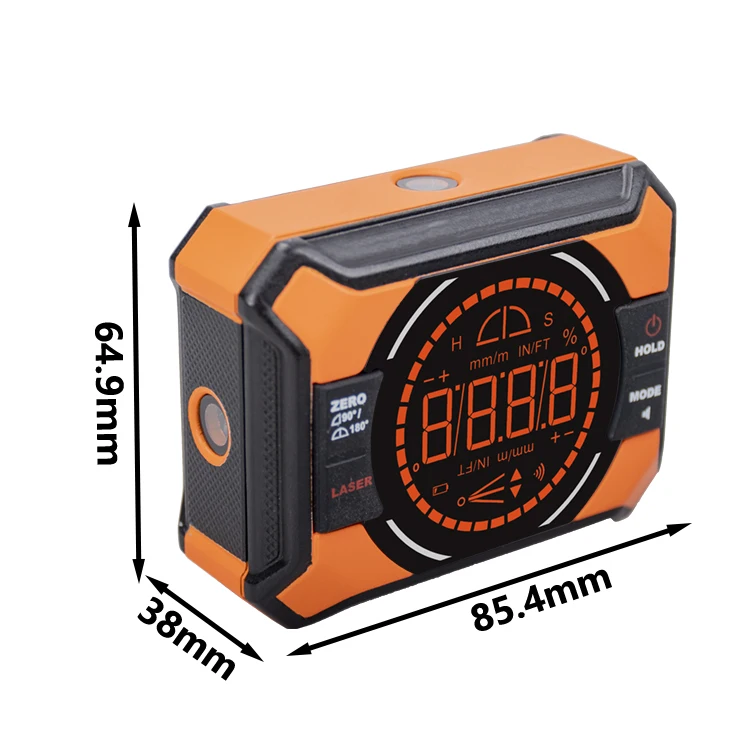

| Item size (cm) | 85.4*64.9*38 mm |
| Net weight(g) | 145g (With Battery) |
| Body Material | PC/ABS housing + 4 Silicone buttons |
| Packing details | Brown Mail Box + 600D Soft Bag + A4 instruction manual |
| Carton size (CBM)/Qty | 0.045cbm/50pcs |
| MOQ | 500pcs |

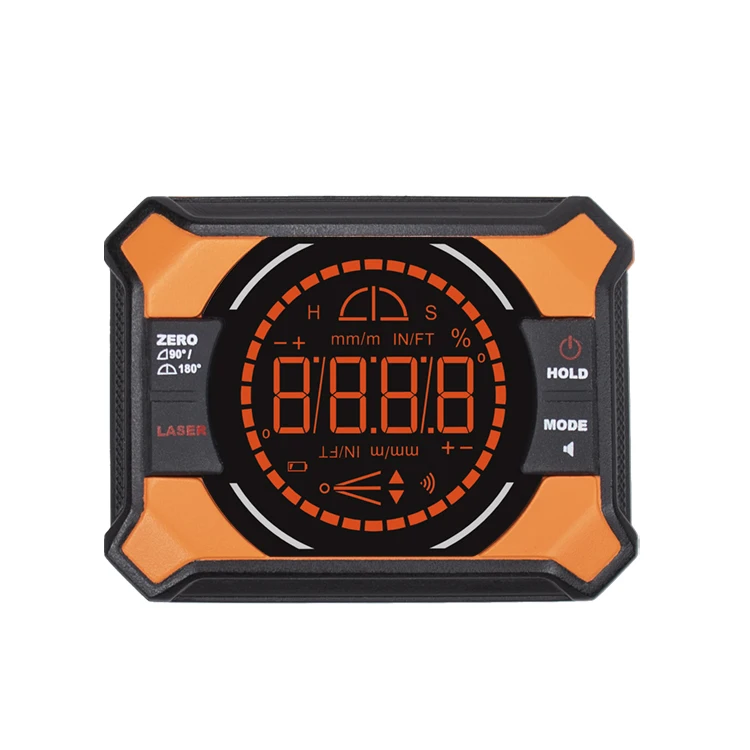

| Screen display | Round Shape "Traffic Light" LED technology for the brightest display, wth e-bubble |
| Horizontal level measuring range | Horizontal level measuring range: 4×90° and 2×180° |
| Resolution | 0.05° |
| Accuracy | ±0.1° at 0° and 90°; ±0.2° at the other angles |
| Measures Modes | ° degrees, % percent, mm/m, IN/FT slope or pitch |
| Features |
- Flip Display: The display rotates automatically with overhead measurements - Set zero function, to check relative angles - Hold function to freeze the measurement |
| Dust and Waterproof | IP54 |
| Operated Power |
Rechargeable lithium battery,3.7V 650mAh Li-ion rechargeable battery ( Type C charging port, with silicone cover) |

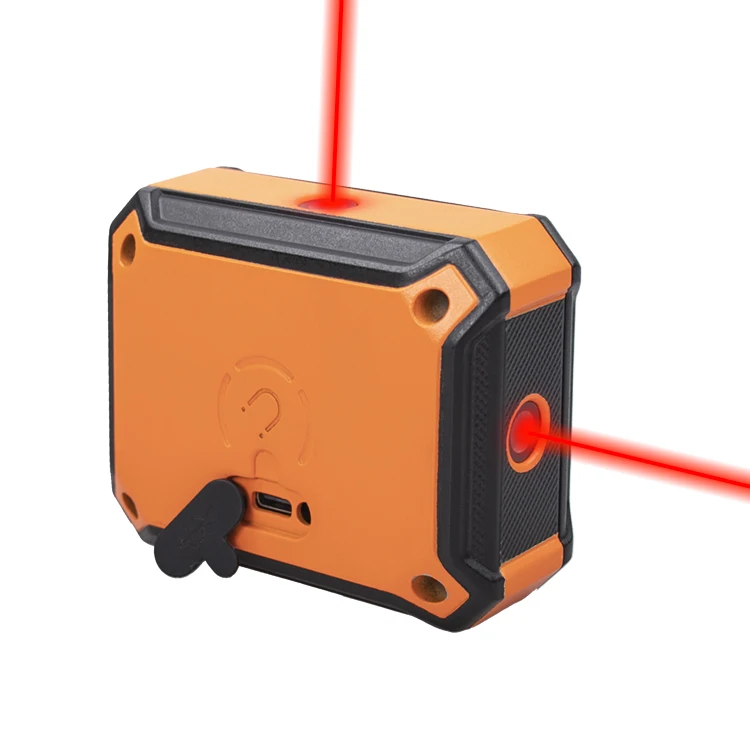

| Special Function | Laser function: 2-way red line laser (perpendicular to each other) |
| Payment terms |
1) T/T (30% deposit before production, 70% balance against copy of B/L) 2) L/C at sight |
| Lead time | 25-45days after receiving the deposit |
| Service | OEM/OEM avaiable, Customized service |
| Samples | Available |
